Hot Isostatic Press (HIP) for Laboratory and R&D [EN]

HOT ISOSTATIC PRESS system fo laboratory purposes

Hot Isostatic Press AIP8

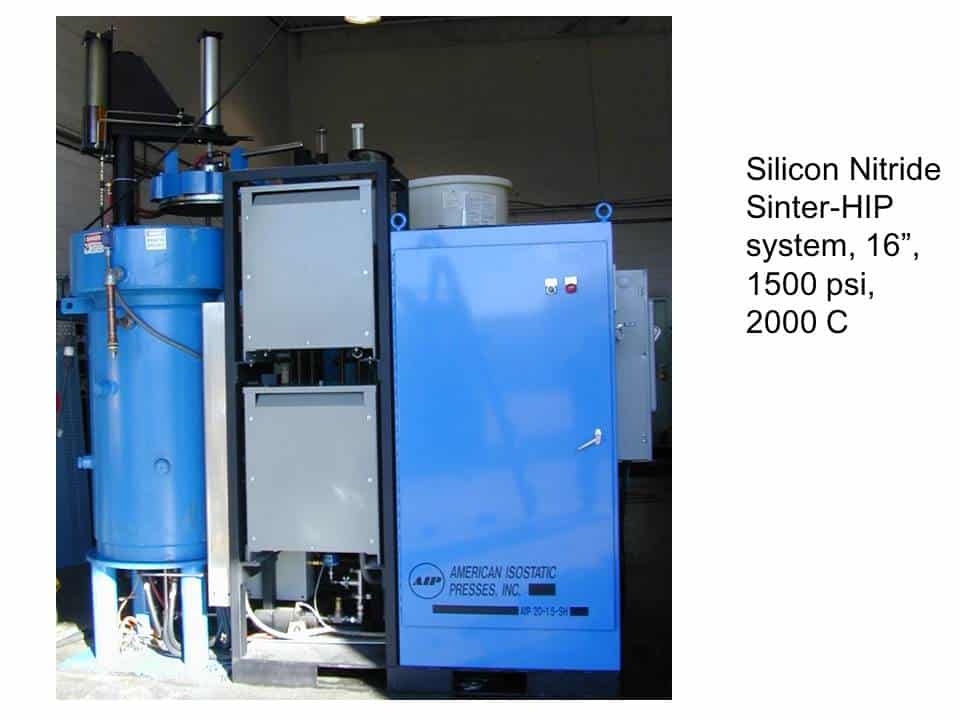

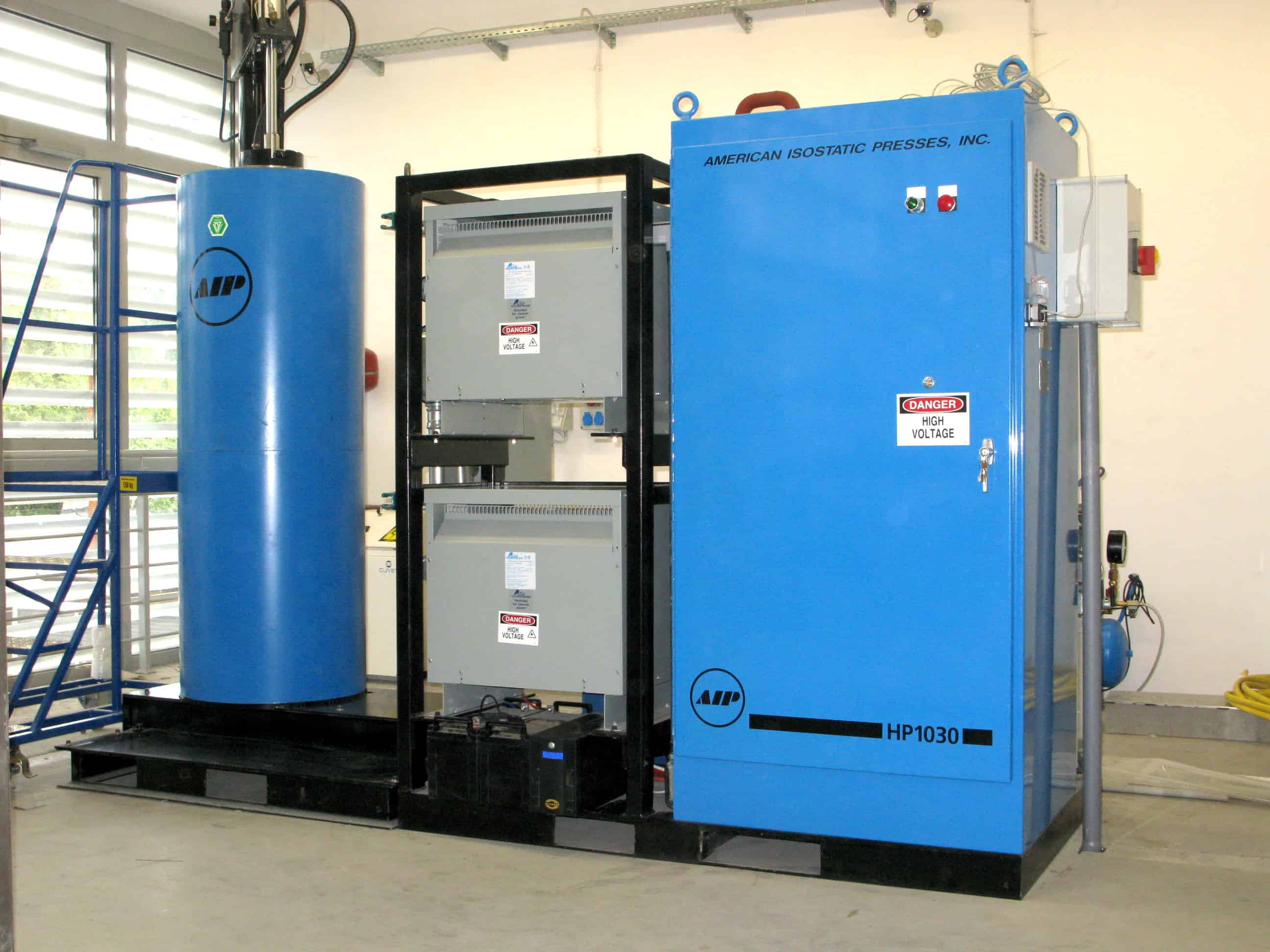

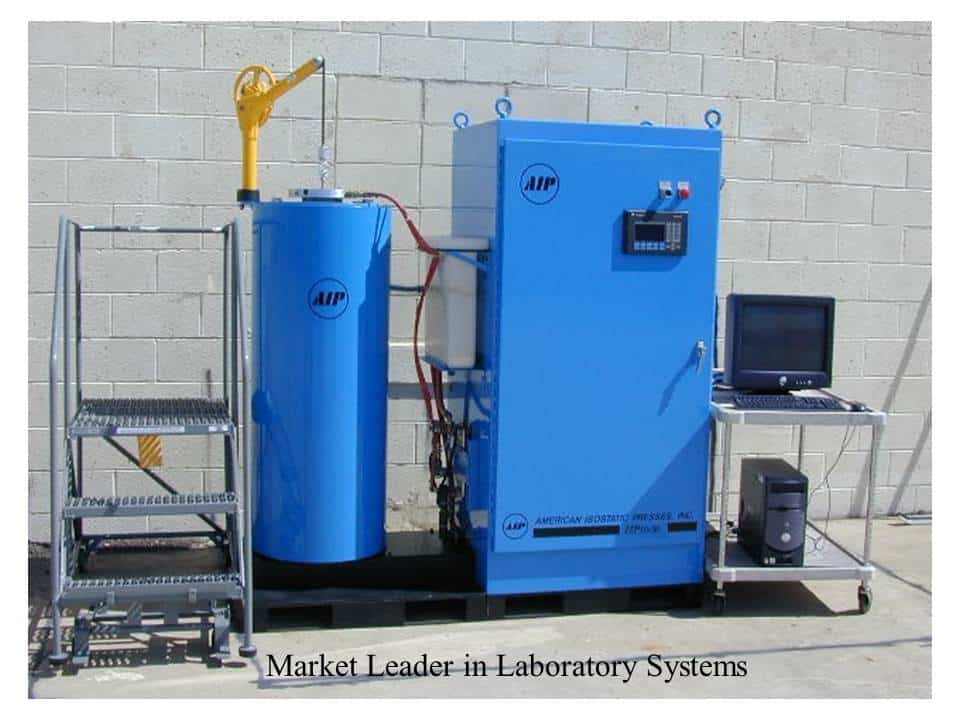

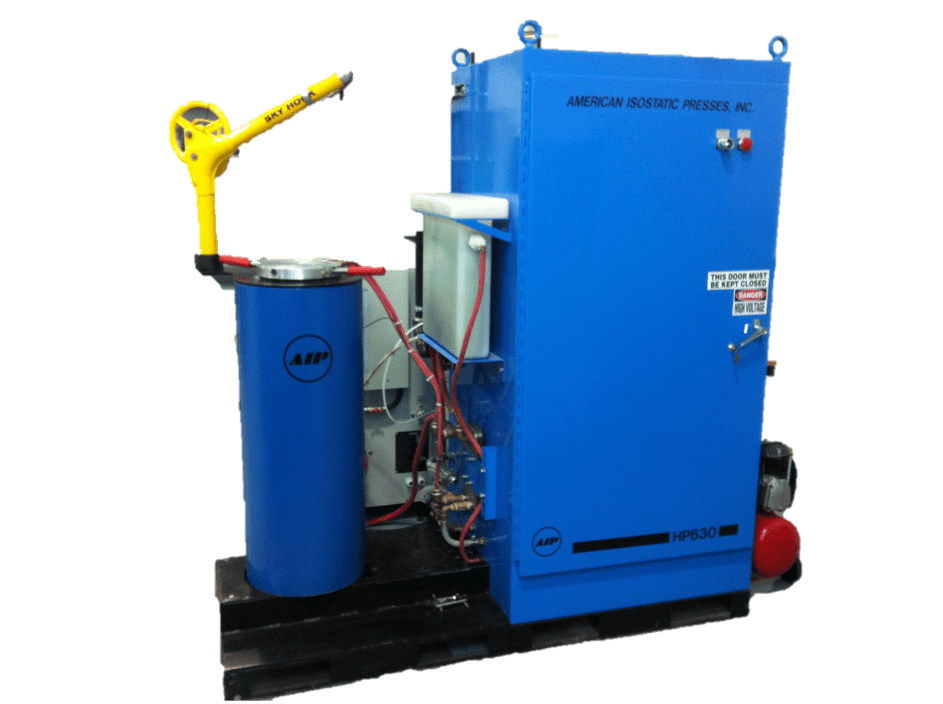

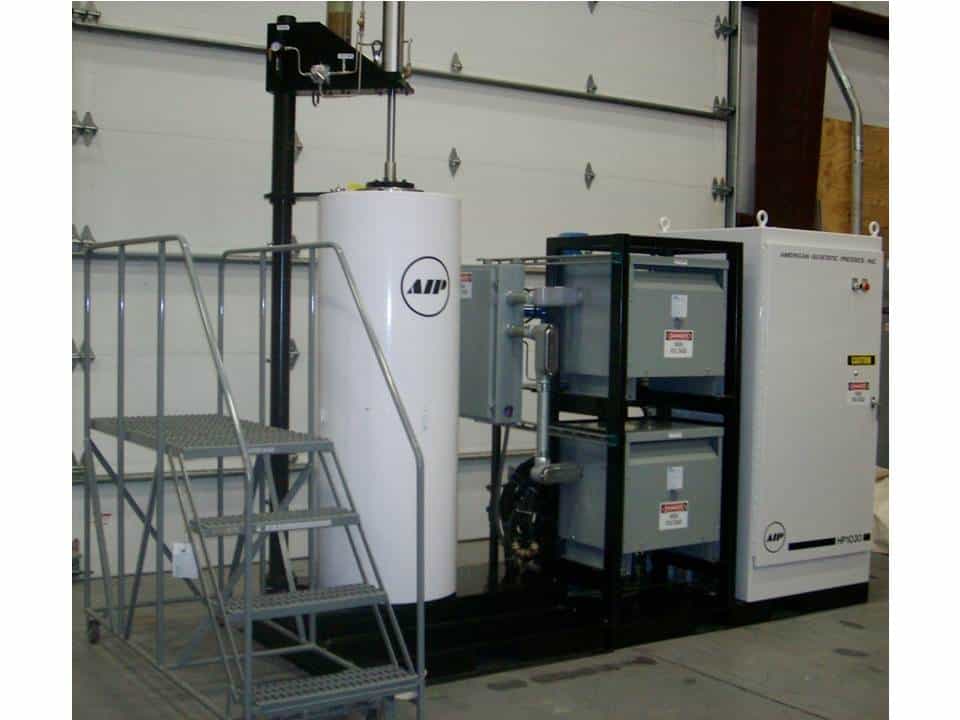

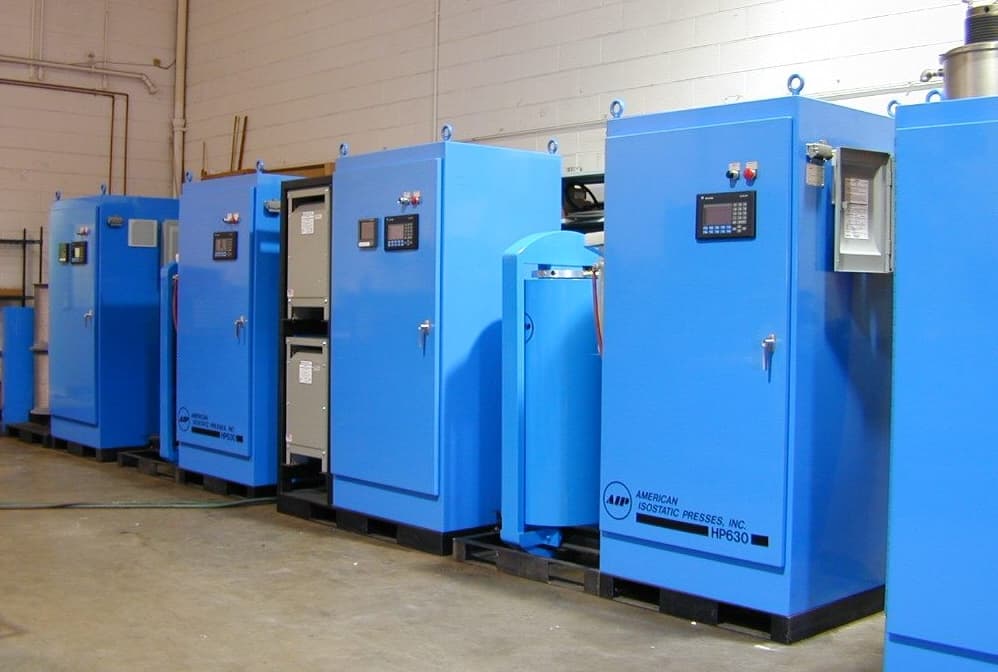

Laboratory HIP has consistently set the standard by which research systems are judged. Economical, safe, reliable, and capable. When you combine advanced computer control, superior furnace design, simple operation, and AIP support you have a combination that can not be rivaled. Many models area available to suit any need. Additionally we will customize systems to meet your unique needs.

Hot Isostatic Press AIP6 laboratory purposes Hot Isostatic Press AIP6 laboratory purposes Hot Isostatic Press AIP6 laboratory purposes


MOST POPULAR MODELS of HIP for laboratory purposes are:

MODEL NAME/SYMBOL EXPLAINATION:
AIPXX-YY-ZZHCW
AIP – American Isostatic Presses Inc. (US producer anagram)
XX – ID Internal Diameter vessel in inches*
YY – IL Internal Length vessel in inches*
ZZ – pressure in kPSI
H – HIP model (Hot-Isostatic-Press)
C – CIP (Cold-Isostatic-Press)
W – WIP (Warm-Isostatic-Press)
* size of vessel is not a working zone

Models Hot Isostatic Press Style Vessel ID inches (mm) Vessel IL inches (mm) Heating Zones Graphite  Furnace ID [mm] Graphite Furnace IL [mm] Moly Furnace  ID [mm] Moly Furnace  IL [mm] Compressor power (larger optional)
HIP, 6 inches vessel ID, 19 inches vessel IL, different pressures and different furnaces to choose
AIP6-19-30H (200 MPa) Threaded 6 (152) 19 (452) 1 75 125 100 150 3
AIP6-19-45H (300 MPa) Threaded 6 (152) 19 (452) 1 75 125 100 150 5
AIP6-19-60H (400 MPa) Threaded 6 (152) 19 (452) 1 75 125 100 150 5
AIP6-100HY (689 MPa) Yoke 6 (152) 19 (452) 1 75 125 100 150 Special
Hot Isostatic Press, 8 inches vessel ID, 28 inches vessel IL, different pressures and different furnaces to choose
AIP8-28-30H (200 MPa) Threaded 8 (200) 28 (700) 2 100 200 100 200 5
AIP8-28-45H (300 MPa) Threaded 8 (200) 28 (700) 2 100 200 100 200 5
AIP8-28-60H (400 MPa) Threaded 8 (200) 28 (700) 2 100 200 100 200 5
HIP, 10 inches vessel ID, 30 inches vessel IL, different pressures and different furnaces to choose
AIP10-30-30H (200 MPa) Threaded 10 (250) 30 (760) 2 150 300 150 300 2ea – 5
AIP10-30-45H (300 MPa) Threaded 10 (250) 30 (760) 2 150 300 150 300 2ea – 5
AIP10-30-60HY (400 MPa) Yoke 10 (250) 30 (760) 2 150 300 150 300 2ea – 5

– Above size are standard models with proposed vessel size and pressures but feel free to ask for other sizes, parameters and vessel style-
– Some parameters can be changed due to new model developing so please always ask for actual parameters.

STANDARD TECHNICAL DESCRIPTION of above models

PRODUCT DESCRIPTION Hot Isostatic Press
HIP SYSTEM MODEL AIP6, AIP8, AIP10
VESSEL INTERIOR DIAMETER (it is not working chamber size) 6, 8, 10 inches
VESSEL INTERIOR LENGTH (it is not working chamber size) 19 inches
WORKING PRESSURE
2000, 3000, 4000 bars (optional very high pressure for R&D 6890 bars)
VESSEL TYPE PED Certified, ASME Section VIII, Div 2 code stamped pressure vessel, National Board registered. Hydro-Tested and stamped. SA-723 steel. Rated 10,000 commercial cycles. Other certification also available for Korea, Japan or China. Some countries also accept US ASME.
CLOSURE TYPE Modified buttress threaded closures
THERMOCOUPLES
  • 2 type C (Tungsten/Rhenium) furnace control/workload
  • 2 type K vessel monitors
  • 2 type R for optional furnaces (other types on request)
COOLING JACKET Removable external water cooling jacket. Cooling jacked is placed on vessel and cools vessel
HEAD HANDLER Semi automatic lift

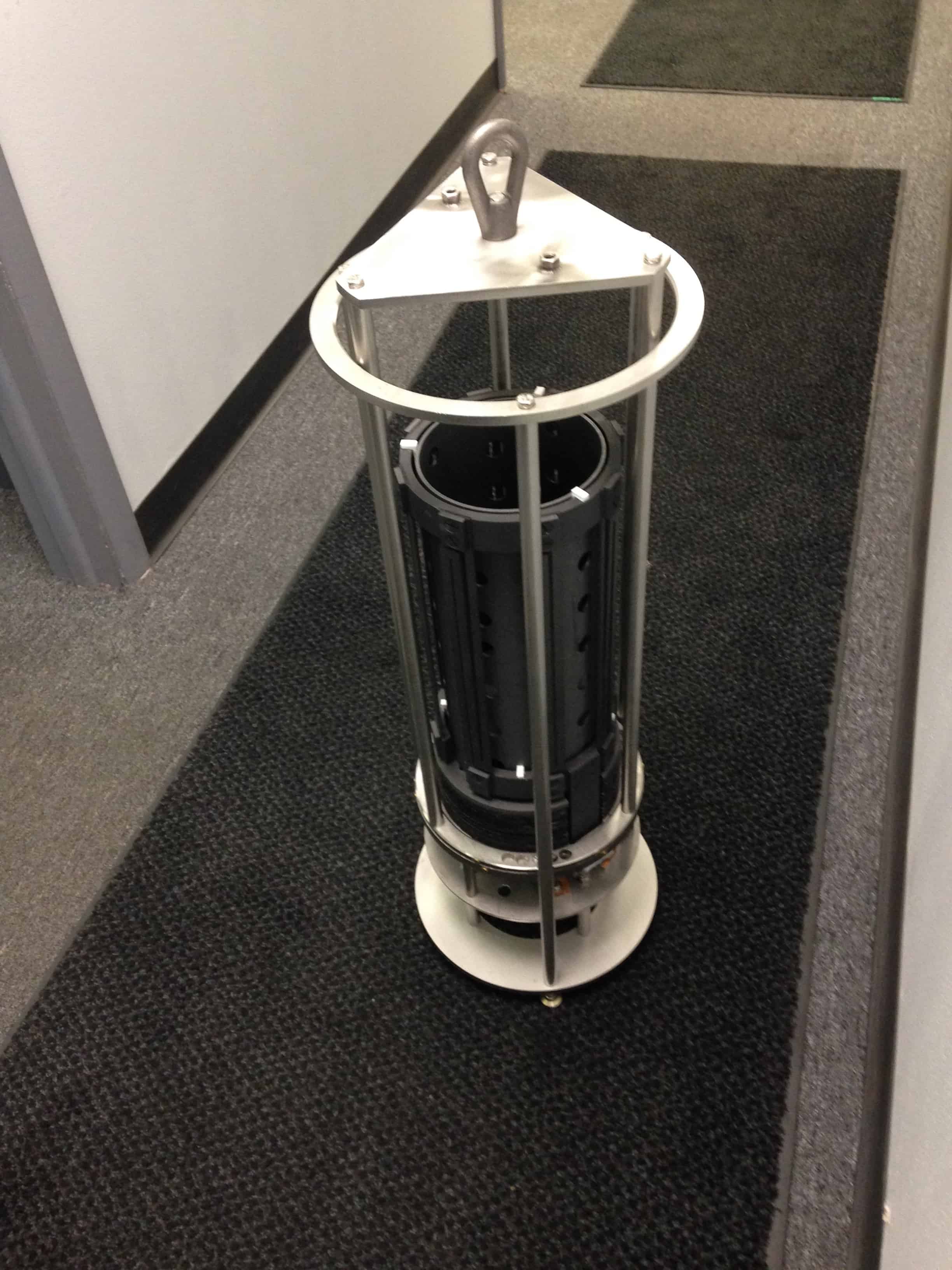

FURNACE  Standard system always comes with one furnace of choice. All furnace types will plug in and are interchangeable. Additional furnaces of the same or other types may be purchased for use with the system. Available furnaces have sizes like in table above and types are:

  • 1200°C Kanthal (stainless based, used for standard processes and production)

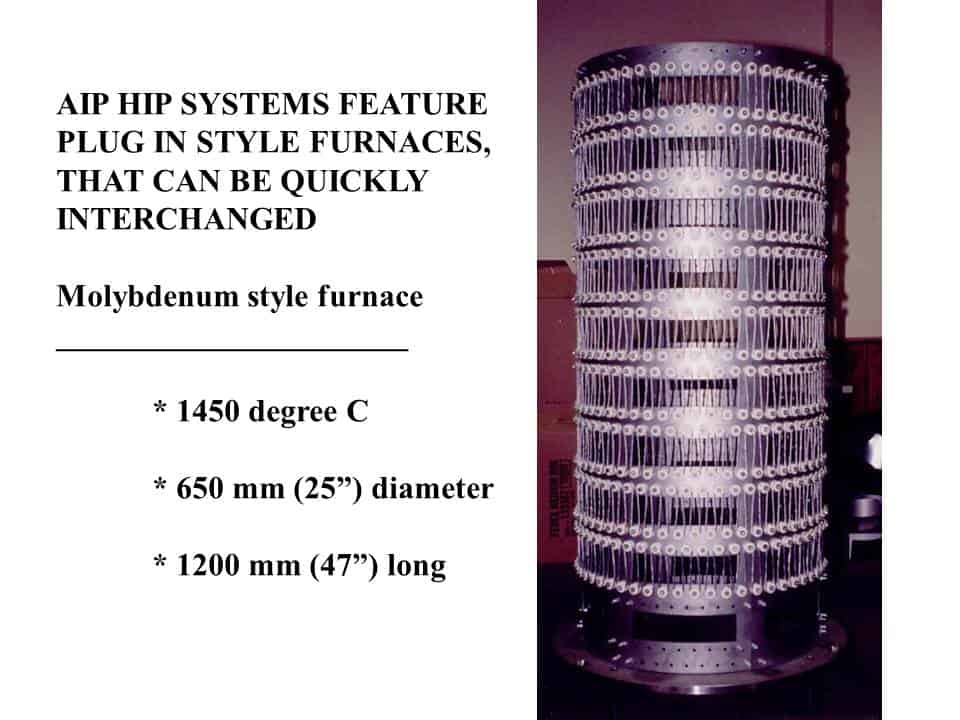

  • 1450°C Molybdenum (clean furnace ready to work partly in air)

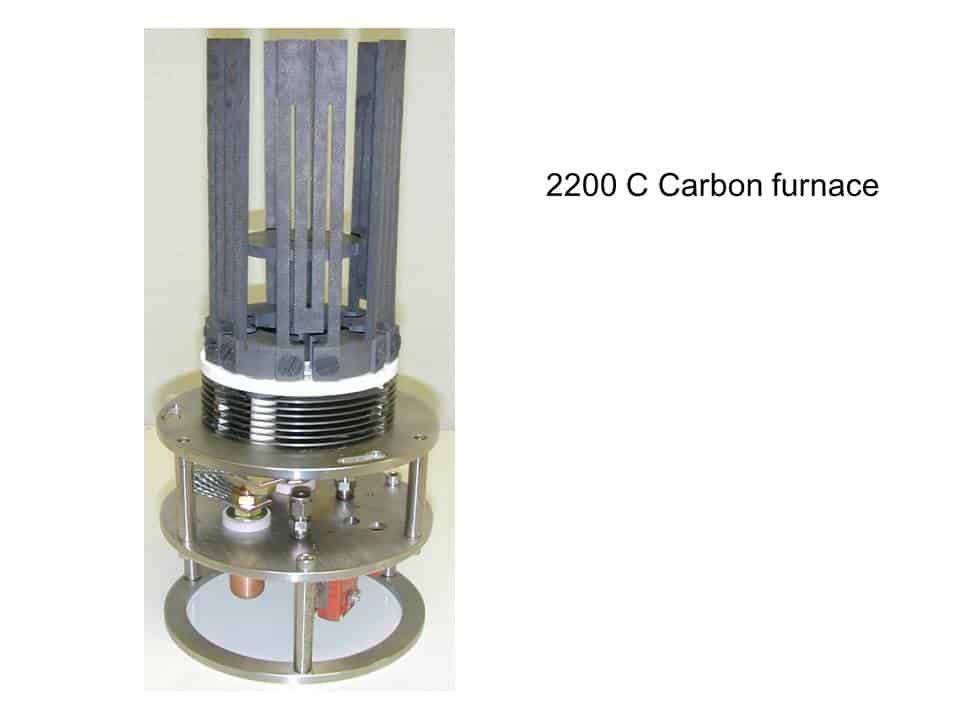

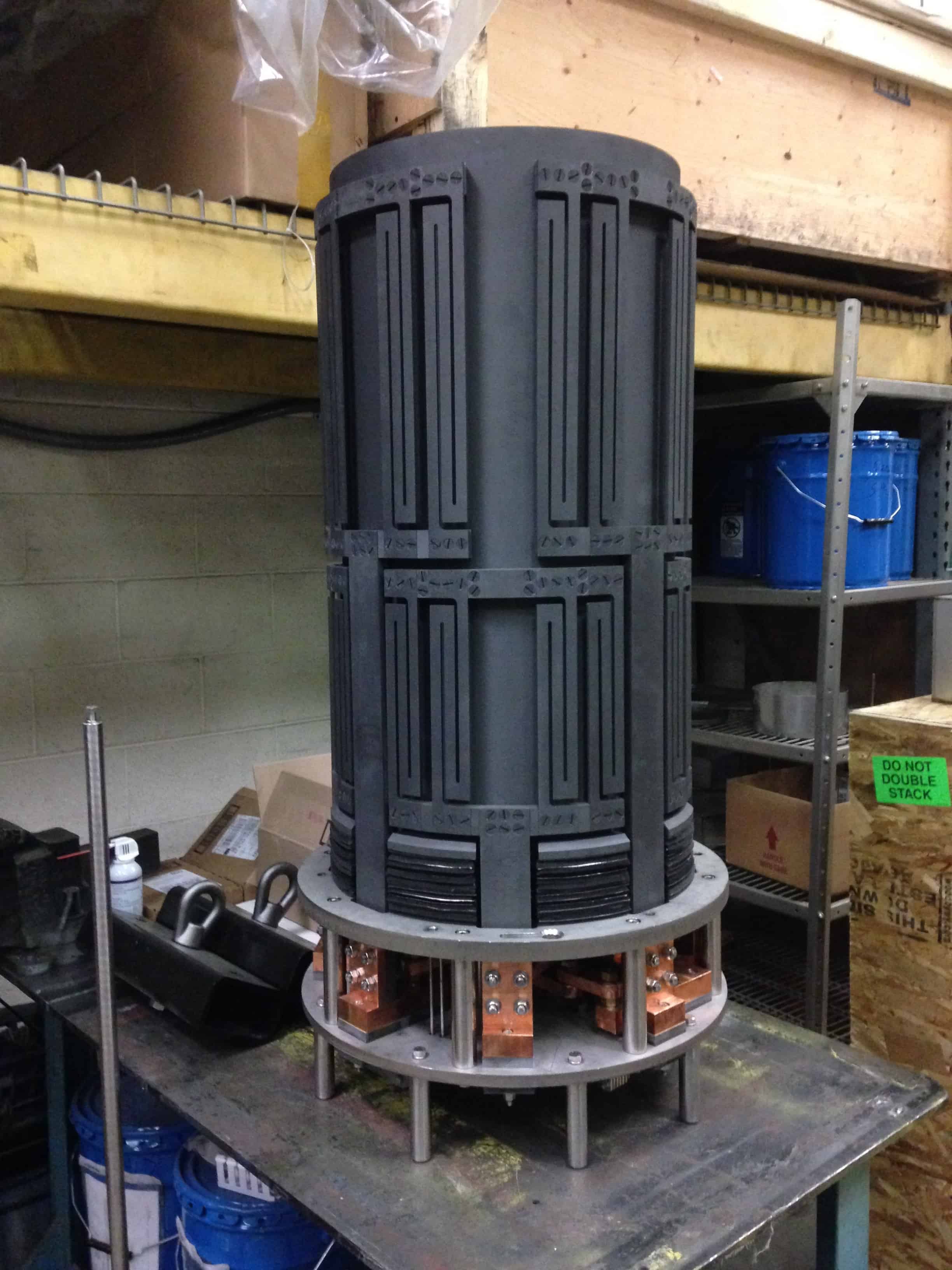

  • 2200°C Carbon/Carbon (designed to work upto max temperature but working temperature is 2000-2100)
  • 1400°C C Platinum (special furnace for special purposes)

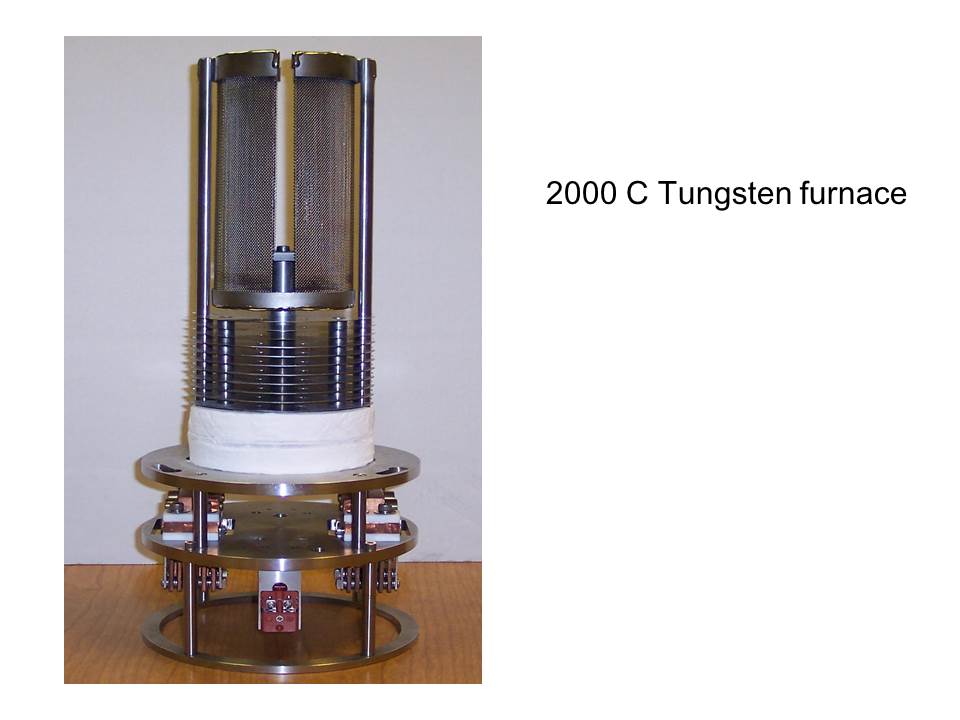

  • 1900°C Tungsten (special furnace for special purposes)
HEATING RATE Standard furnace rate up to 25 C per minute. Cooling rate varies with temperature, pressure and load, but can be up to 40 C per minute. Typical cool down from maximum rated temperature is approximately 3 hours

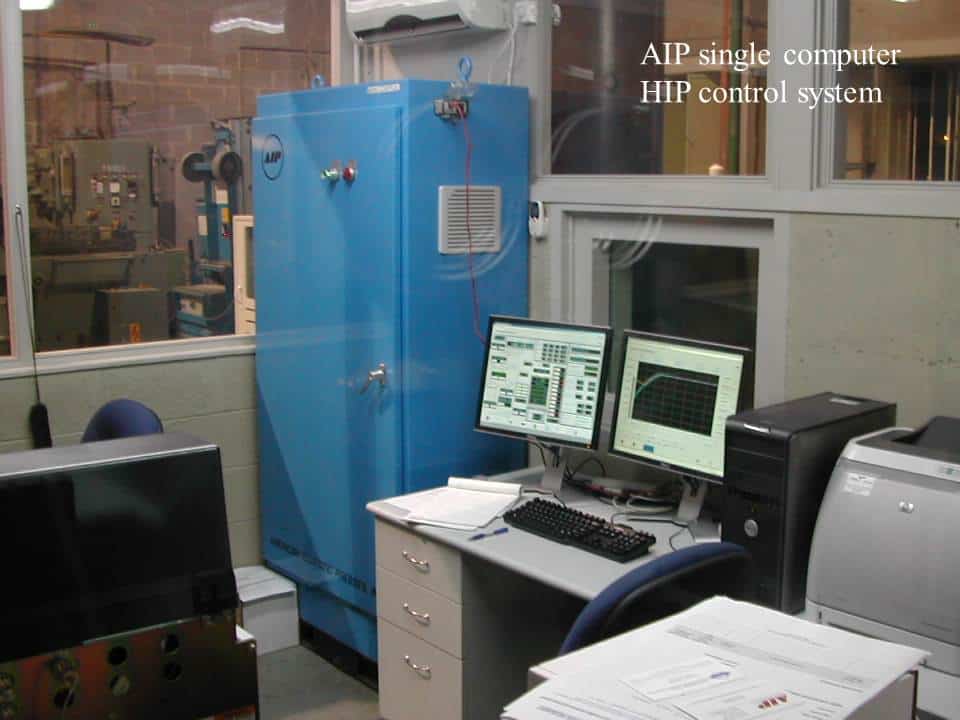

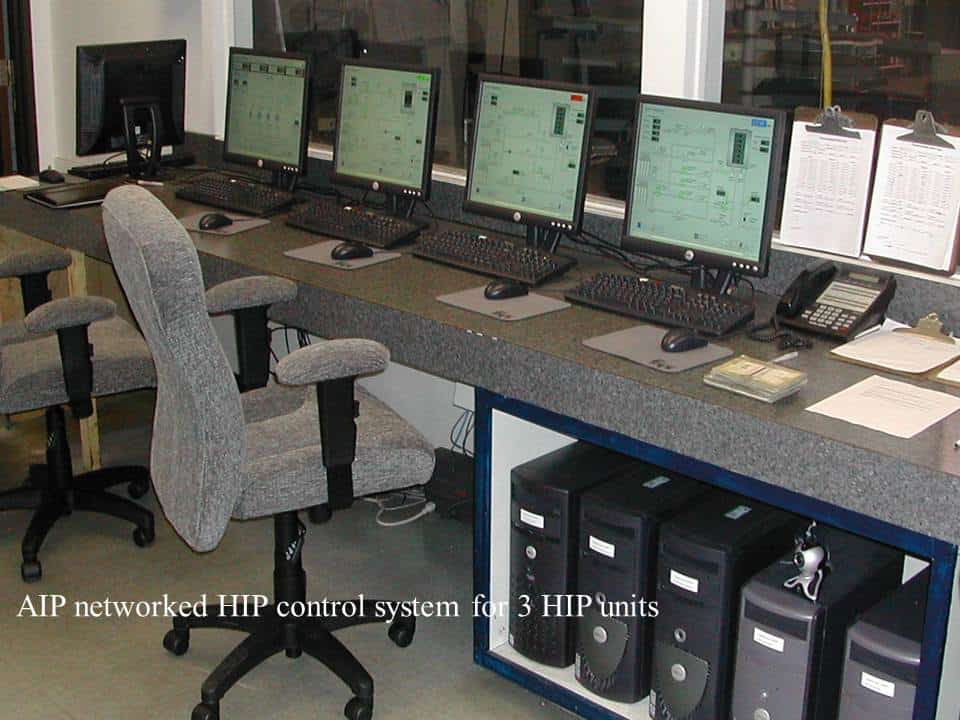

CONTROLS Fully automatic, Pentium IV computer controlled with Wonderware In Touch 9.5 graphical interface. Allen-Bradley Compact Logix PLC controller. Computer and 19 inch LCD monitor supplied. Files logged to Excel compatible format
POWER SUPPLY HDR phase angle fired SCR into step down low voltage transformer. Computer assisted short circuit detection and high amperage monitoring http://www.hdrpower.com/
COMPRESSOR Hydro-Pac electro-hydraulic compressor rated to max pressure. Typical pump time approximately 1 hour. Can be longer if higher pressure. http://www.hydropac.com/HTML/lilcritter.html
PIPING Butech high pressure valves, and associated fittings. System designed for 30000 psi  (207 mPa) operation. https://www.haskel.com/products/butech-high-pressure-valves/
PRESSURE MEASUREMENT Stellar brand transducer 30,000 psi. http://www.stellartech.com/products/techsheets-press/pressuremodels.html
VACUUM SYSTEM Oerlicon DA2 cfm, associated fittings, valves and gauges. https://www.leybold.com/en/
COOLING Treated closed loop cooling system with reservoir, pump and heat exchanger. Connects to customer coolant (city, re-circ, or chiller) at 5 gpm.
SET OF SPARE PARTS INCLUDED   Fuses, bulbs, O-rings, lubricants, thermocouples, rapture discs, etc.
PRODUCT TESTING   The system is pre-tested at AIP facility to perform specified parameters.
PRODUCT DOCUMENTATION Two complete sets of drawings and operator manuals will be provided.
SHIPPING AIP shall crate, prepare and load the unit onto a carrier’s truck. Unit can be shipped air or sea.
