High Pressure Processing Machine for Production

Very wide offer of HPP machinery for production and small pilotage production.

High Pressure Processing Machine High Pressure Processing Machine

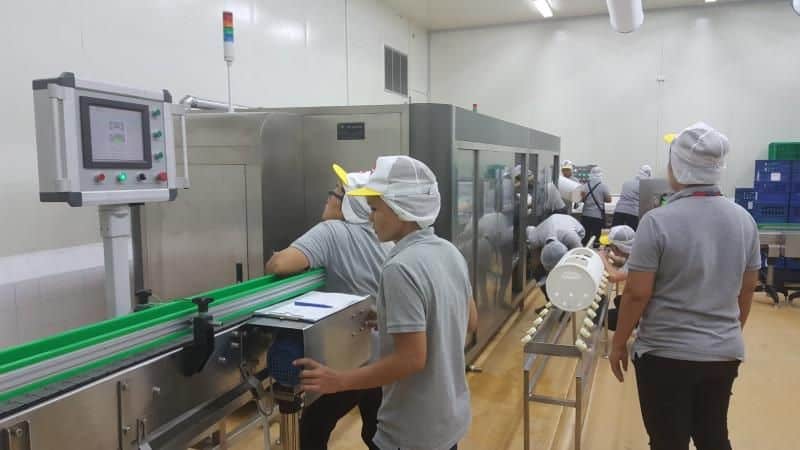

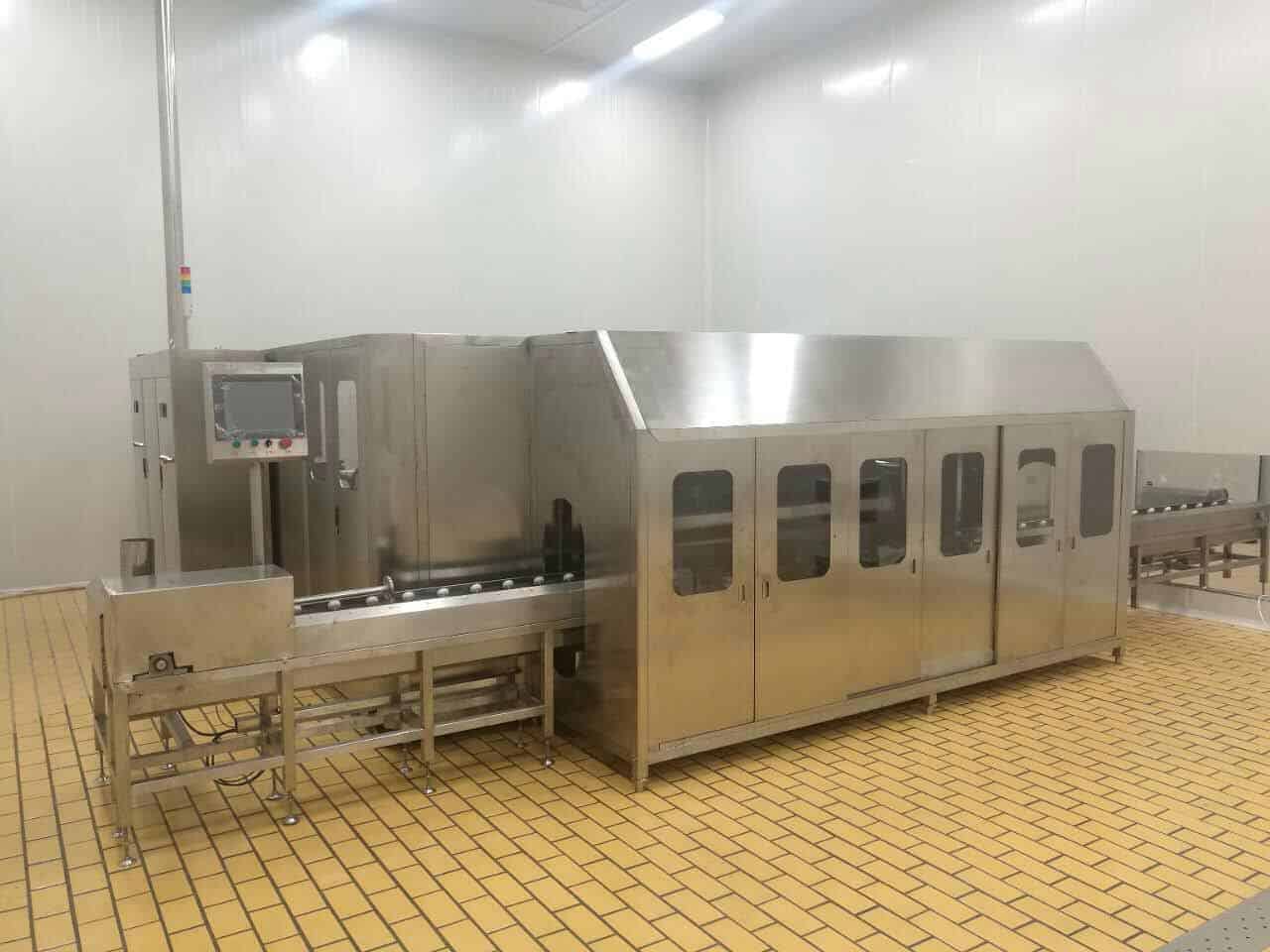

Production system HPP 100L@600MPa Production system HPP 200L@600MPa

Offered systems are designed for small pilot production as well as full time processing. It has extended premium warranties for failure-free operation during tests and spare parts included. Offered systems are fully certified for use in Europe, have pressure certificates (PED) and Declaration of Conformity (CE) as well as others like f.eg. ASME accepted in USA.



High Pressure Processing Machine – for production main data:

Model HPP50L
(option 55L)
HPP100L
(option 150L)
HPP200L HPP300L
Vessel volume (3L and 10L also possible) 50 liters 100 liters 200 liters 300 liters
Internal Diameter ID = 220 mm ID = 300 ID = 300 ID = 300
Internal Length IL = 1650 mm IL = 1700 mm IL = 3200 mm IL = 4000 mm
Maximum pressure

600 MPa
~6000 bar

Working fluid Local drinking water (Purified water or R/O water will be better)
Temperature for processing water 5- 20`C. Circulating Cooling Water

Time for cycle

ca. 6-8 cycles per hour (depends on holding time) or
ca. 15 cycles/h (without holding time)
ca.. 4 min one cycle (without holding time)

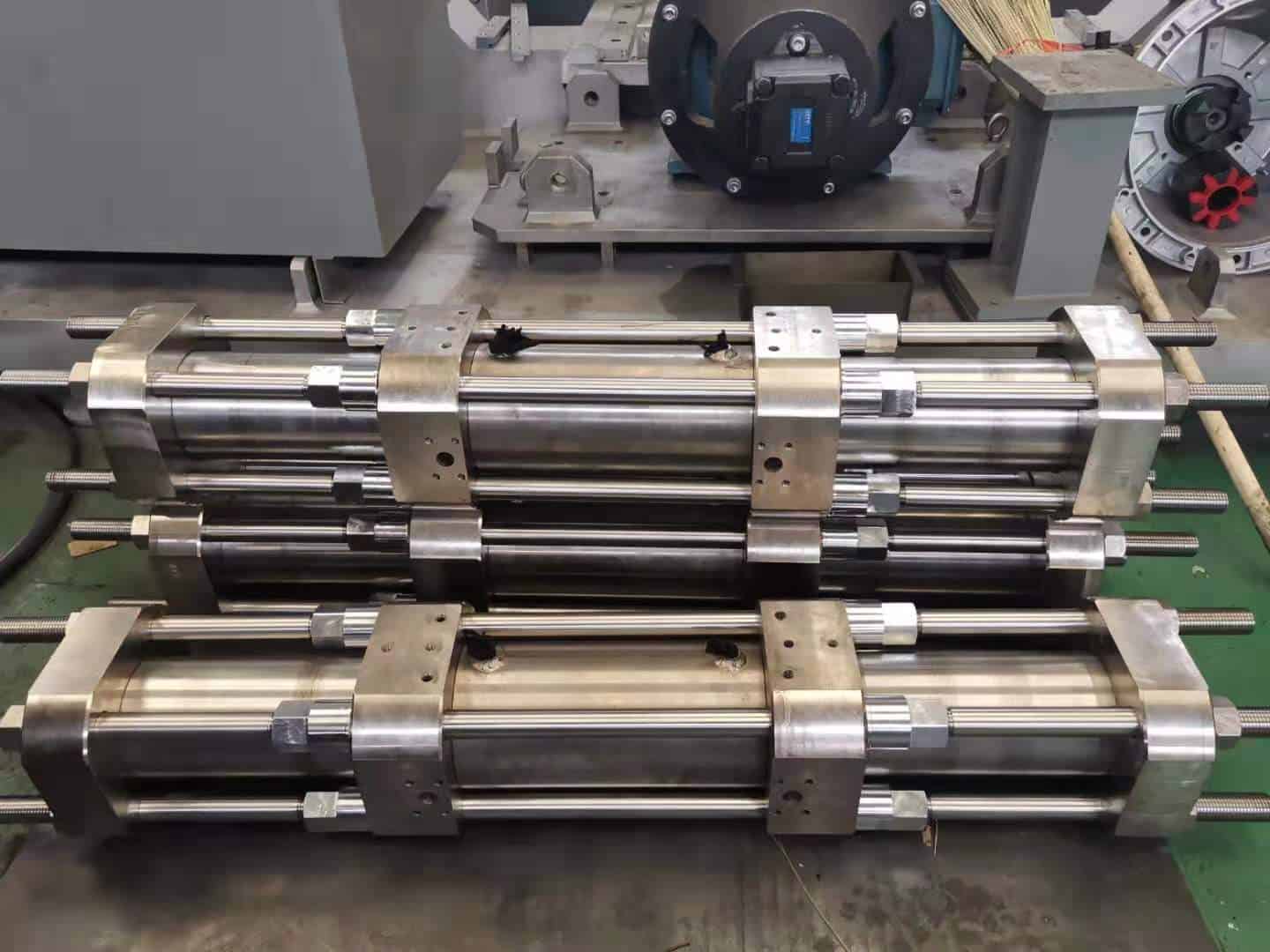

Number of intensifiers

1 2 4 6

Electrical power

55 kW 110 kW 220 kW 240 kW

Sanitary food designHigh pressure

All the stainless steel including machine outer cover are the 304 or 316 stainless steel for the machine

Pressure Transducers

Own brand military technology reliable and durable

Automatic loading and unloading line

Automatic conveyor loading basket enter vessel and output vessel for unloading basket

Carriers basket for loading the product

Providing the food grade basket with the machine together. 4 baskets or more together with system.

Control cabinet

Providing international standard control cabinet including ABB, Schneider and other famous brand electrical components.

Control modes

Auto-control and freely setting high pressure processing parameters. Touch screen control. Multi language possible on request.
– pressure,
– temperature,
– time,
– alarm indication,
– pressure curve etc.
– datum with print,
– output,
– records etc function,
– international internet remote monitoring,
– online service, diagnosis and fault service

Certificates

Quality certificate ISO 9001:2015
Europe Pressure Directive PED 97/23/CE
American ASME-U3

Warranty

Providing the whole machine service at least 2 years.

Vessel Warranty

Three (3) years without cycle limit

Yoke Warranty

Six (6) years without cycle limit

Spare Parts

At least providing 2 years main spare parts with machine together

Installation, commissioning and training

– after the machine arriving in to Your factory, Producer sends engineers for installation, commissioning and training,
– the time will take about one week or so,
– buyer will provide accommodation for 3-4 persons during the stay in Your factory.

Technical support

We will provide technical support and service at any time during your using the machine. If the machine have problem in the warranty time, your engineer could not fix the problem by themselves. we will send our engineer to your site to fix the problem.

–> Bigger systems also available like 400 and 500 liters vessel.

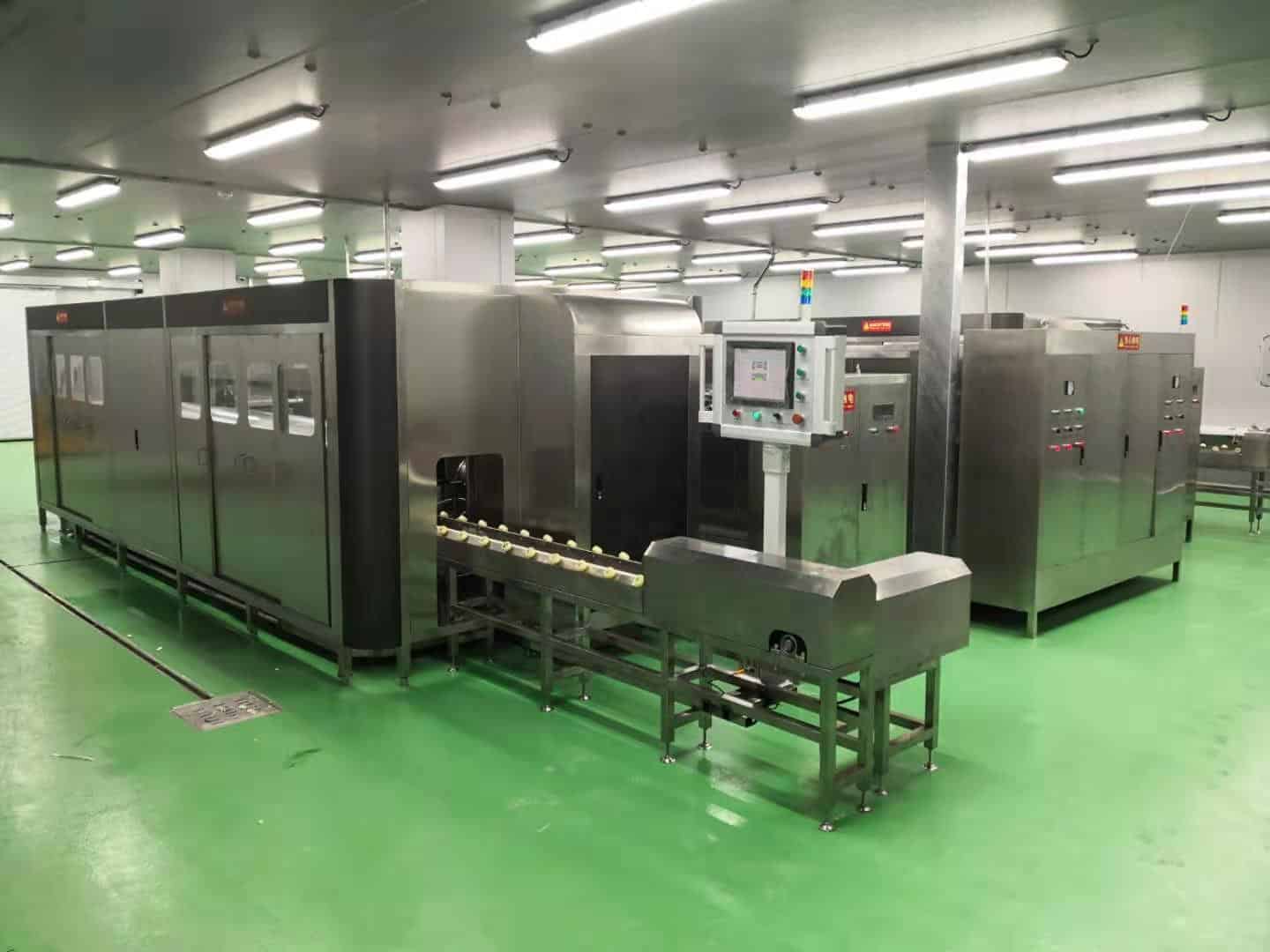

–> Also available DUAL systems like 2x100L, 2x200L, 2x300L, 2x400L and 2x500L
